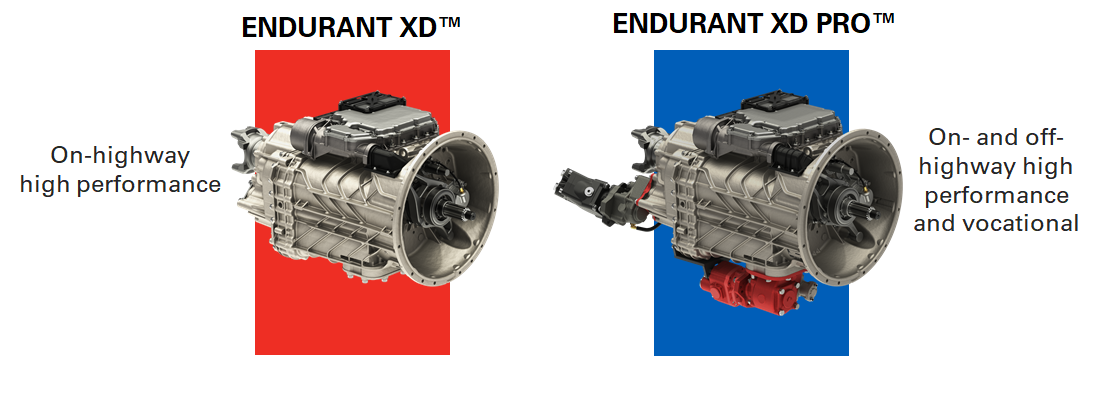

You might be wondering why the Endurant XD series has two models. The answer is simple, we tried to make it easier for you to order the right transmission for your application.
| Learn more about Endurant XD | Learn more about Endurant XD Pro | |
System Weight lbs.(kg) |
808 (367) |
813 (369) |
Number of reverse gears |
3 |
6 |
Self-adjust diaphragm spring clutch type |
Standard Duty |
Extreme Duty |
Rock Free feature |
Not available |
Available when dash switch is spec’d |
Off-Highway Performance Goal |
Not available |
Available, Secondary Configuration switch recommended. |
Max. GCWR |
Up to 166,000 lbs. |
Unlimited |
Max. Engine Torque |
Up to 1850 lb.-ft. |
Up to 2050 lb.-ft. |
Off-road (class D) operation |
Class A, B, C Only |
All types (Class A, B, C, and D) |
Approved applications |
Linehaul, Pickup & Delivery, Heavy Haul
For Non-Class D Roads: Construction, Refuse and Agriculture |
Linehaul, Pickup & Delivery, Agriculture, Heavy Haul, Construction, Refuse, Agriculture Logging, Mining, Oil Field, Fire & Rescue, and Off-Highway |
Low-Speed Maneuvering |
Conventional |
Frequent maneuvering in tight spaces, frequent low-speed operation. |
Multi-Speed Drivelines |
Not available |
2-speed axles and Auxiliary Transmissions |
Split-Shaft PTO |
Not available |
Available |
Eaton Cummins Automated Transmission Technologies has a broad portfolio of transmissions to help you get the job done. By answering a short series of questions about your truck and your route, we'll give you a couple of recommendations for heavy-duty automated transmissions that best fit your fleet's unique needs.
