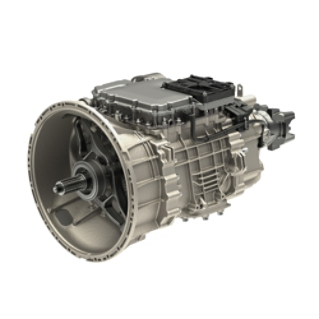

Endurant HD V automated transmission

For vocational fleets currently running Fuller Advantage automated transmissions or that don’t need all the capability of the Endurant XD series, the Endurant HD V automated transmission features an impressive mix of capability and efficiency.

Designed for use with engines up to 1700 lbs.-ft. (2300 Nm) of torque and a maximum Gross Combination Weight Rating of 70,000 pounds (31,751 kg), it’s loaded with features used around the job site like an Extreme Duty clutch for improved low-speed maneuvering, Rock Free to help get unstuck in mud or sand, an Off-highway Performance Goal tuned for changing soil conditions, and dual PTO openings to power what you need. Drivers will appreciate the confident launch performance on grades thanks to Hill Start Aid, the smooth shifting and gear selection logic. The new Secondary Configuration mode gives drivers the ability to toggle between two Performance Goals for a tailored driving experience that accounts for the load or terrain.

  • Efficient twin-countershaft design
  • Transmission fluid temperature and pressure sensor alerts driver before system damage occurs
  • Standard 8-bolt bottom and 4-bolt rear PTO mounting locations with a combined 95 horsepower capacity
  • 250,000-mile lube change interval
  • High ratio coverage for excellent low-speed maneuverability
  • IntelliConnect™ remote diagnostics increases uptime by reducing unplanned downtime and quicker repair diagnosis
Torque
up to 1700 lbs.-ft. (2300 Nm)
Maximum GCW
70,000 pounds (31,751 kg)
Dual PTO Openings
combined 95 horsepower max capacity

GET TO KNOW ENDURANT HD V

The Endurant HD V delivers an impressive combination of performance and efficiency.

  • An all-aluminum housing reduces weight and contributes to thermal optimization.
  • The Precision Lubrication System allows gears and bearings to get lubricant exactly where and when it is needed for enhanced durability and efficiency.
  • Cooler-less design reduces the risk of cooler leaks and costly repairs.
endurant hd series performance goals.png

PERFORMANCE GOALS

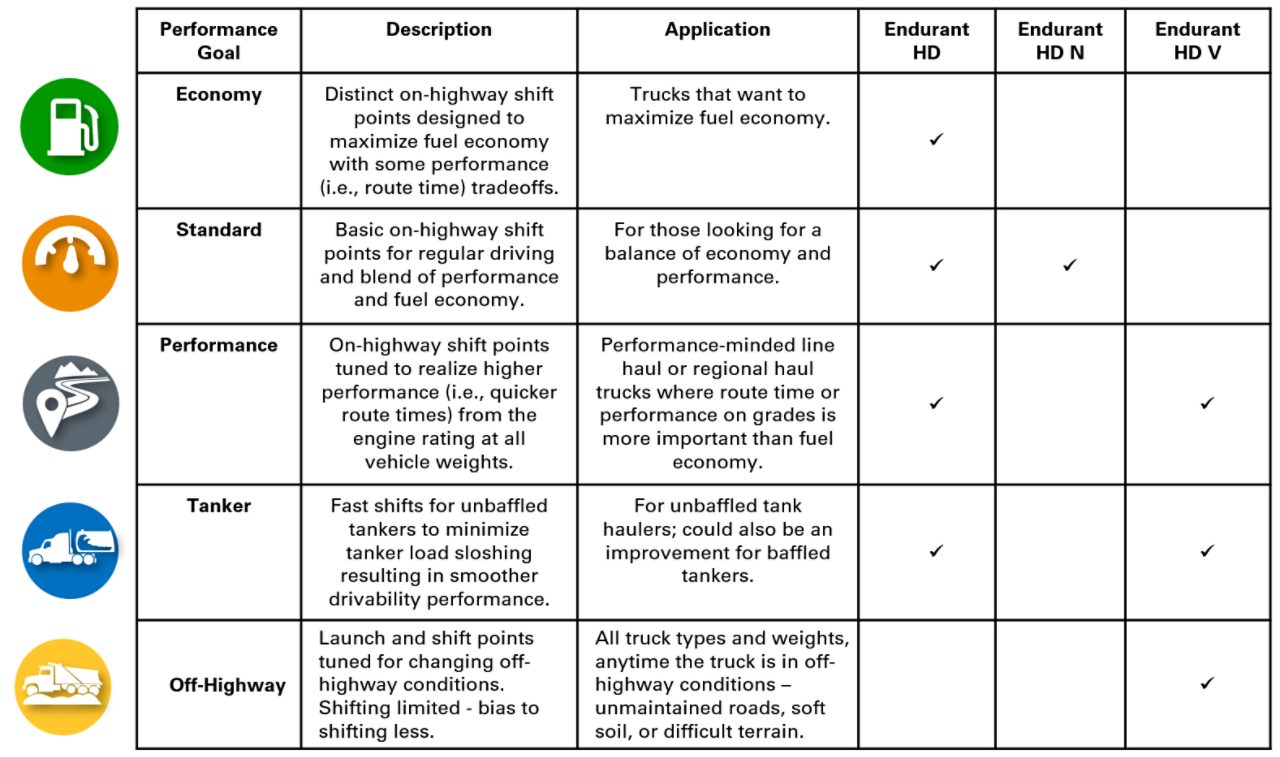

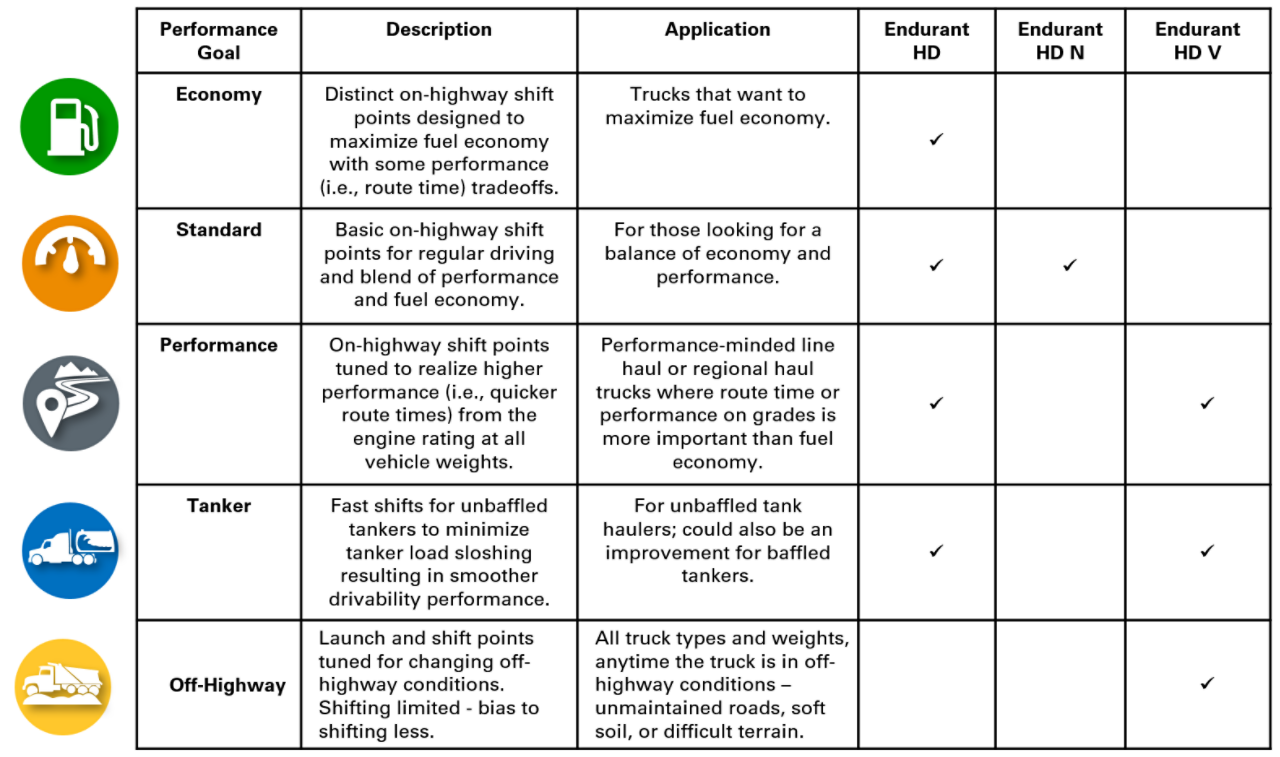

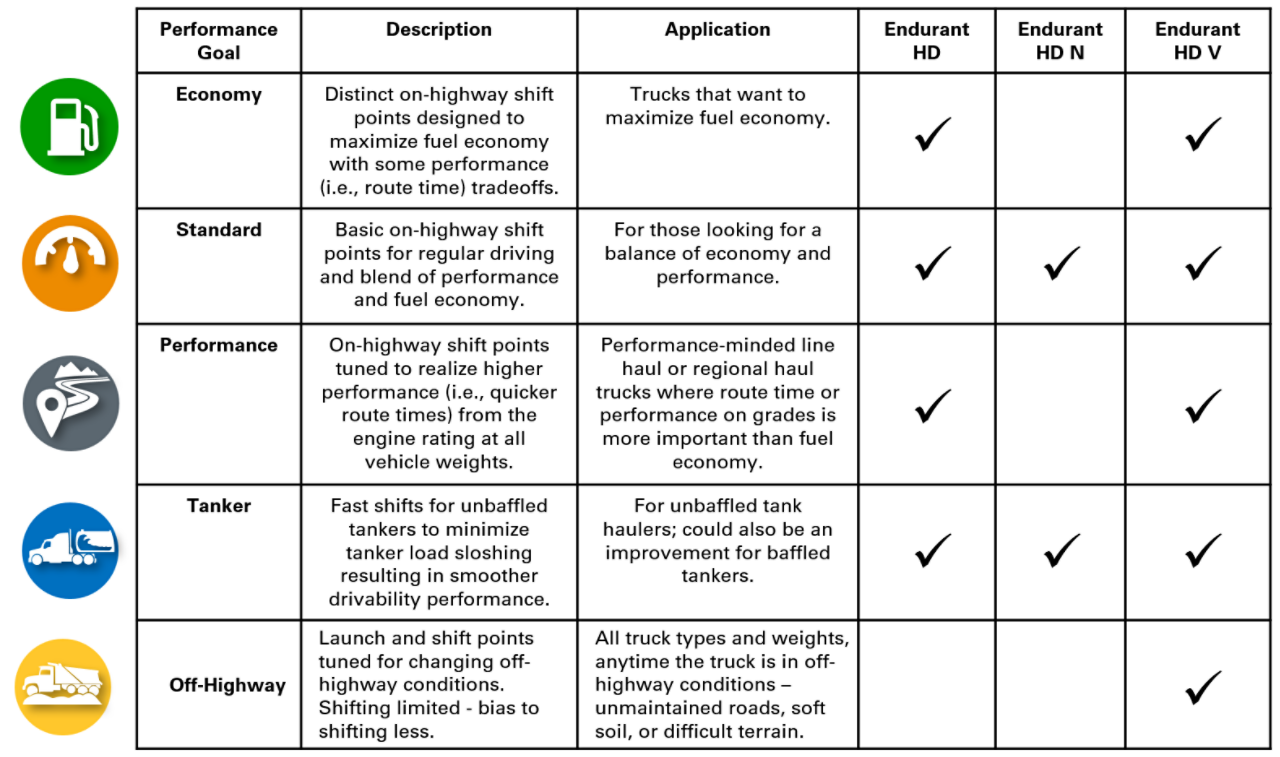

New for the Endurant HD series are Performance Goals which combine transmission shift points and clutch calibrations with unique software. This allows operators to easily tailor transmission performance to the demands of the job.

GEARLOGIC TECHNOLOGY

Achieving maximum performance requires a combination of strength and smarts. To get the most out of the Endurant XD series hardware, we use Gearlogic technology - a suite of intelligent features that improves performance,  fuel efficiency, and driver confidence.

FEATURES: DESCRIPTIONS:
HILL START AID Prevents unintended rollback or roll forward. When the grade exceeds the programmed threshold, the foundation brakes hold the truck for a controlled launch. It works when pointing uphill in drive or facing downhill in reverse.
AUTO NEUTRAL Automatically switches the transmission into neutral once the parking brake is engaged to prevent potential movement of the vehicle.
ENGINE OVERSPEED PROTECTION The transmission system up-shffts if necessary to prevent engine overspeed in drive, manual, and low modes.
ENHANCED ENGINE BRAKING Downshifts the transmission to help slow the truck on long, steep descents and increase brake pad life.
LOAD-BASED SHIFTING Selects appropriate starting gear and makes shift decisions based on grade, vehicle weight, engine torque, and throttle position.
URGE TO MOVE Drivers simply release the brake pedal to automatically inch forward, similar to the feel of a passenger car.
CREEP MODE Offers ultimate control to "creep" with a locked clutch at engine idle. Drivers can manually select different gears to fine-tune vehicle speed.
NEUTRAL COAST Fuel-saving feature that disengages the driveline on slight downhill grades.
SMART GEAR SELECTION The appropriate starting gear is selected and makes shift decisions based on grade, vehicle weight, engine torque, and throttle position - skip shifting when appropriate, making the most efficient changes based on those conditions.
PREDICTIVE SHIFTING Uses look-ahead technology to execute shift decisions that improve fuel economy and driver comfort.

BACKED BY THE BEST. SO YOU CAN DELIVER YOUR BEST.

The Endurant family of transmissions are backed by the support, solutions, and expertise of the Roadranger network—the most experienced and accessible drivetrain consultants in the business. With their knowledge and IntelliConnect* remote diagnostics monitoring vehicle fault codes, you can count on the Endurant HD V to keep you rolling mile after mile while reducing unplanned downtime.

Endurant HD V Service Literature

You can now access digital versions of our product service literature. These digital documents are always up-to-date and contain the same real-time information you would have access to using Product Information within our ServiceRanger 4 diagnostic tool.

Click on the Troubleshooting Guide, Service Manual or Service Parts thumbnails below to access each document.

Standard Warranty

Transmission Linehaul and Pickup & Delivery applications: 5 years / 750,000 miles
  Construction, Refuse, and Agriculture applications: 3 years / 300,000 miles
Clutch Linehaul and Pickup & Delivery applications: 3 years / 350,000 miles
  Construction, Refuse, and Agriculture applications:  2 years / 200,000 miles

Extended Protection Plans

Transmission 1 year; 2 year; and 2 year / 100,000 miles
Clutch 1 year / 100,000 miles; 2 year / 150,000 miles

Sign up for the Eaton Cummins Tech Newsletter

Never miss an important update for Eaton Cummins automated transmission service manuals and other publications. Receive timely notifications whenever changes are made. Stay up to date with the latest maintenance procedures and ensure your service is always at its best.

Specifications

Specifications

    Overdrive (C ratio)
Speeds Forward Speeds 12
Reverse Gears 1 or 2
Capacities Maximum GCW lbs. [kgs]
70,000 [31,751]
Maximum Engine Torque lb.-ft. [Nm]
1700 [2300]
Dimensions Length in. [mm]
37.9 [963.7]
Weight lbs. [kgs]
665 [302]
Gear Ratios
Overall Ratio 18.85:1
First Gear Ratio 14.43
Forward Gears Gear Ratio % Step
1 14.43 31
2 11.05 31
3 8.44 31
4 6.46 31
5 4.95 31
6 3.79 30
7 2.91 31
8 2.23 31
9 1.70 31
10 1.30 30
11 1.00 31
12 0.77 --
Reverse Gears 1 16.92
2 12.95
Lubrication and Cooling Lubrication Interval miles [km] 250,000 [402,336]
Oil Capacity pints [liters] 16 [7.57]
Recommended Oil Eaton PS-386
PTO Capability
4-bolt Yes
6-bolt No
8-bolt Yes
Thru-shaft No
PTO Speed % of Engine 137
Combined PTO Torque lb.-ft. [Nm] 385 [522]
Typical Vehicle Types
Construction Mobile Crane
Tanker Block truck
Stake truck Refuse roll-off
Wrecker/Recovery

  Application approval rules and details provided through the truck manufacturer and Eaton Cummins.
Models
Maximum Engine Torque Capacity lb.-ft. [Nm]
EHD-14F112C-V 1450 [1966]
EHD-16F112C-V 1650 [2237]
