Discontinued
Transmissions

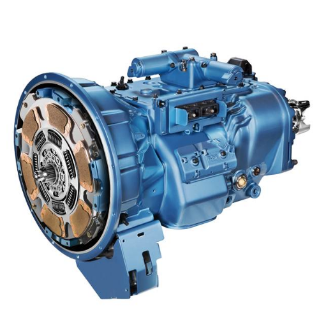

Fuller Advantage automated manual transmission

The Fuller Advantage series 10-speed automated manual transmission uses a Precision Lubrication System that requires much less lubricant than competitive AMTs and eliminates the need for a transmission cooler – saving weight and eliminating potential leaks.

Precision Lubrication System
Reduces heat and eliminates transmission cooler
Maximum GCW
110,000 pounds (49.895 kg)

Get to know Fuller Advantage

Fleets have many priorities, but fuel efficiency, reliability, cost of ownership and safety are near the top of everyone’s list. Let’s take a look at how the Fuller Advantage AMT addresses these needs.

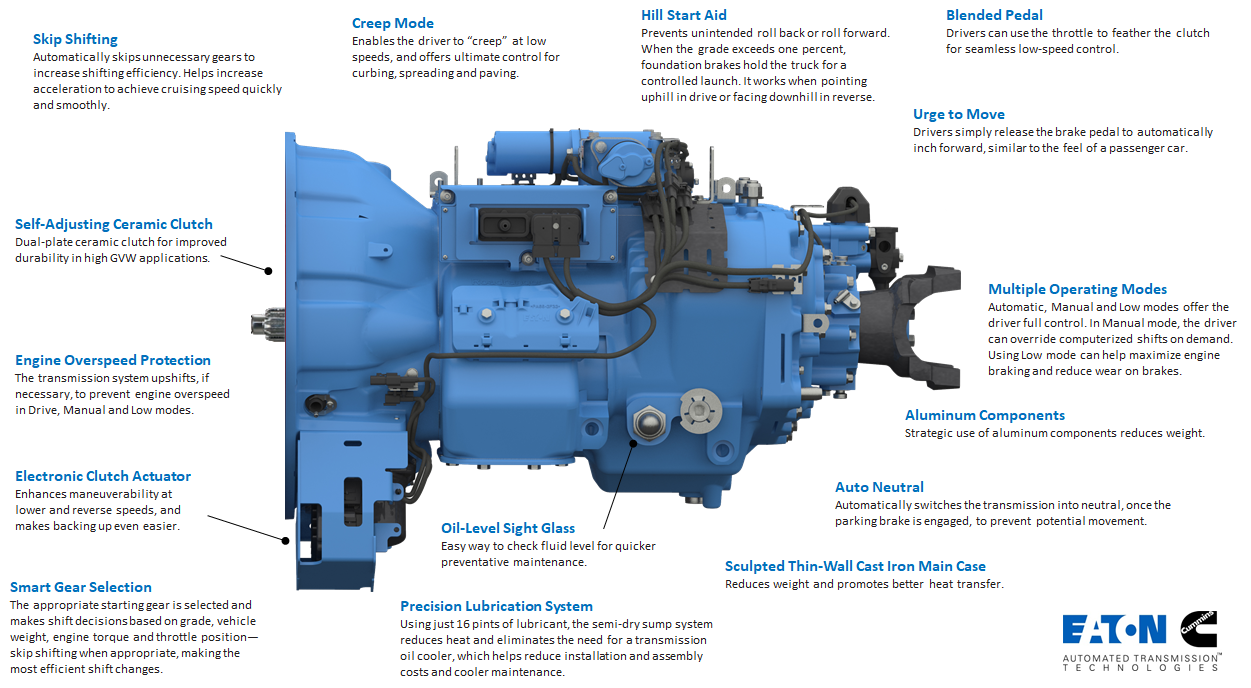

Fuller Advantage automated transmission product features

A powerful remote diagnostics solution

If there is a service issue, Fuller Advantage AMT uses Eaton IntelliConnect,™ a telematics-capable system that provides near real-time monitoring of vehicle fault codes, prioritizes the critical events and provides accurate and comprehensive action plans by our technical experts. Unplanned downtime is reduced and quicker repair diagnosis gets you back on the road faster.

Learn more and sign up

Peace of Mind

Like all Eaton Cummins automated transmissions, the Fuller Advantage AMT is backed by the support, solutions and expertise of the Roadranger® network.

Fuller Advantage Service Literature

You can now access digital versions of our product service literature. These digital documents are always up to date and contain the same real-time information you would have access to using Product Information within our ServiceRanger 4 diagnostic tool.

Click on the Troubleshooting Guide or Service Manual thumbnail to access each document.

Standard Warranty

Transmission 5-year/750,000 miles for linehaul commercial vehicles
Clutch 3-year/350,000 miles

Extended Protection Plans

Transmission 1 year; 2 year; and 2 year/100,000 miles
Clutch 1 year/100,000 miles; 2 year/400,000 miles

Video gallery

Watch to learn more about Fuller Advantage

    Specifications
    Models
    Maximum Engine Torque Capacity lb.-ft. [Nm]
    FAO-14810C-EA3 1450 [1966]
    FAO-16810C-EA3
    1650 [2237]
    FAOM-15810C-EA3 3
    1550 [2102]
    FAOM-16810C-EA3 3
    1650 [2237]


    Notes:

    3 +200 lbs.-ft. [271 Nm] in top two gears.

    Specifications

        C ratio Overdrive
    Speeds Forward Speeds 10
    Reverse Gears 2
    Capacities Maximum GCW lbs. [kgs]
    110,000 [49,895]
    Maximum Engine Torque lb.-ft. [Nm]
    1650 [2237]
    Dimensions Length in. [mm]
    31.8 [807.7]
    Weight lbs. [kgs]
    850 [385]
    Gear Ratios
    Overall Ratio 17.53:1
    First Gear Ratio 12.80:1
    Forward Gears Gear Ratio % Step
    1 12.80 38
    2 9.25 37
    3 6.76 38
    4 4.90 37
    5 3.58 37
    6 2.61 38
    7 1.89 37
    8 1.38 38
    9 1.00 37
    10 0.73 --
    Reverse Gears 1 13.63
    2 2.78
    Lubrication and Cooling Lubrication Interval miles [km] 500,000 [804,672]
    Oil Capacity pints [liters] 16 [7.57]
    Recommended Oil Eaton PS-386
    Integral Oil Pump Available option
    External Oil to Water Cooler Not required
    External Oil Filter Not required
    PTO Capability
    6-bolt Yes 4
    8-bolt Yes
    Thru-shaft No
    PTO Speed % of Engine 79
    Combined PTO Torque lb.-ft. [Nm] 500 [677.9] 6
    Typical Vehicle Types
    Linehaul Regional haul


    Notes:

    4 Will interfere with front mount oil filter. Rear or remote mount oil filter must be utilized.
    6 Intermittent torque of up to 750 lb.-ft. at the countershaft is permitted for 5 minutes of each 15 minute PTO duty cycle.

    Download Links

    Fuller Advantage Service Literature

    You can now access digital versions of our product service literature. These digital documents are always up to date and contain the same real-time information you would have access to using Product Information within our ServiceRanger 4 diagnostic tool.

    Click on the Troubleshooting Guide or Service Manual thumbnail to access each document.
