Discontinued
Transmissions

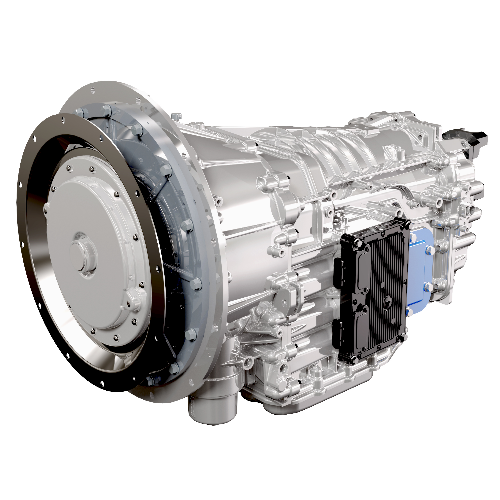

Procision dual clutch transmission

The Procision 7-speed dual-clutch automatic transmission is designed for medium-duty trucks and buses with smart features that deliver more savings and driver confidence than the torque converter automatic transmissions.

Fuel economy
8-10% better than a torque converter automatic
Maximum GCW
35,000 pounds
Lube change interval
150,000 miles or 10 years

Get to know Procision

Can a transmission really make a difference for a medium-duty truck? We’re confident that it can because Procision was developed using customer input.

Smart

Designed specifically for Class 6 and 7 commercial vehicle markets, Procision represents the first use of proven, dual-clutch technology for these segments. Compared to torque converter automatics, dual-clutch transmissions (DCTs) are more efficient when accelerating from a stop and getting to the highest gear - reducing fuel consumption and engine noise. Gear changes are seamless thanks to the powerful computer that uses grade, load and driver input.

Savings

Total operating costs are an important factor when selecting a new transmission. That’s why Procision delivers 8-10% better fuel economy, uses less lubricant, and has maintenance intervals that are two times longer than a torque converter automatic.

Confidence

Features such as Hill Helper, Creep Mode, and brake-pedal actuated Tap Down Shifting improve driver confidence, particularly on routes with hilly, difficult terrain, or in urban routes with traffic and loading docks.

Peace of Mind

Procision offers the peace of mind that comes with its standard 3-year, unlimited-mile warranty for commercial vehicle applications. If service is needed, a simple one-step process allows your local dealer to perform the work and get your vehicle back on the road more quickly. Best of all, Procision is backed by industry-leading solutions, support and expertise of the Eaton Roadranger® network.

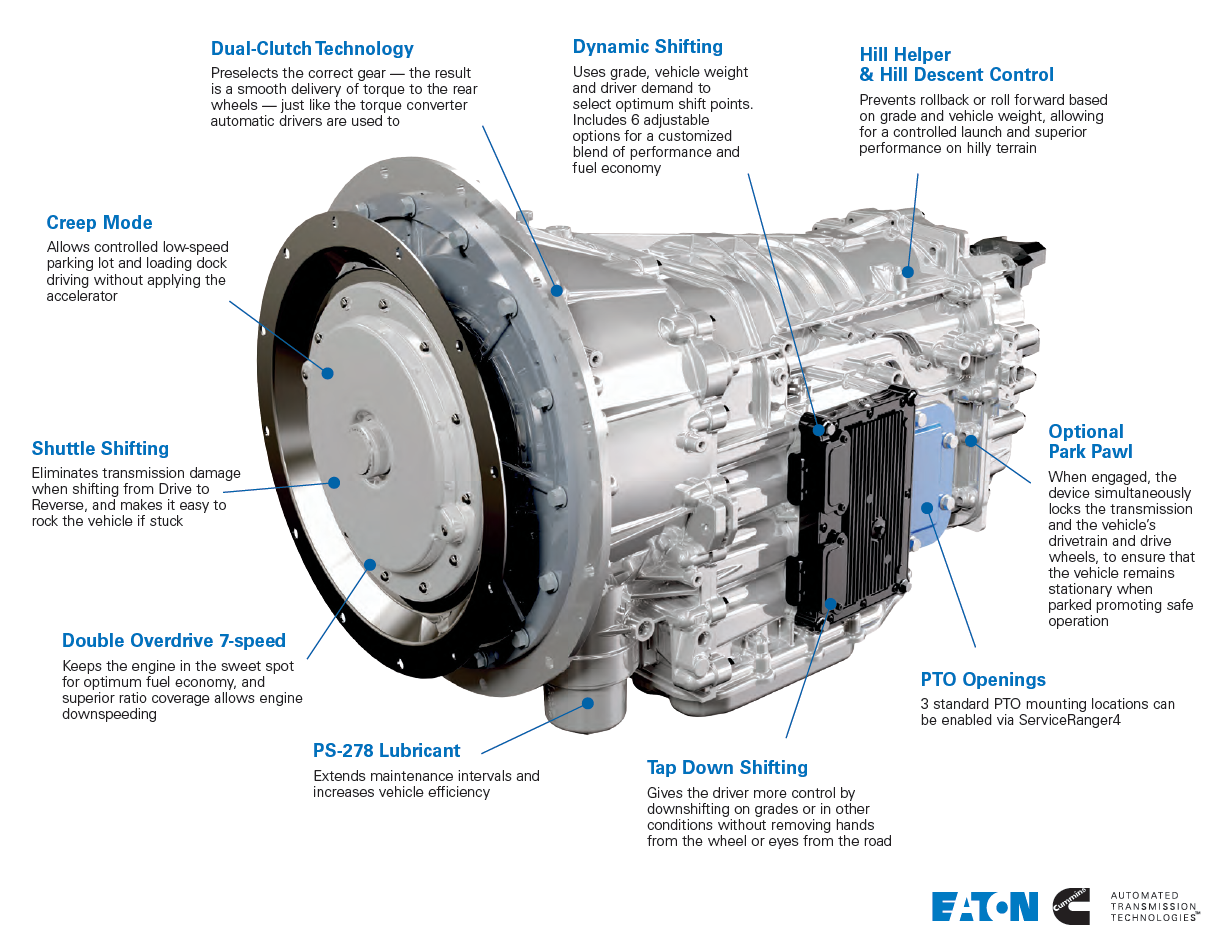

Procision has several industry-leading features:

Video gallery

Watch these videos to learn more about Procision.

    A powerful remote diagnostics solution

    If there is a service issue, Procision uses Eaton IntelliConnect,™ a telematics-capable system that provides near real-time monitoring of vehicle fault codes, prioritizes the critical events and provides accurate and comprehensive action plans by our technical experts. Unplanned downtime is reduced and quicker repair diagnosis gets you back on the road faster.

    Learn more and sign up

    Peace of Mind

    Like all Eaton Cummins automated transmissions, UltraShift PLUS is backed by the support, solutions and expertise of the Roadranger® network.

    Standard Warranty

      Application Torque rating
    Transmission
    Standard Duty - Pickup & delivery, Beverage, Towing ALL 3 year/unlimited miles
      ALL
      Standard Duty - Bus
    ALL 5 year/unlimited miles
      ALL

    Extended Protection Plans

      Application Torque rating
    Transmission
    Standard Duty - Pickup & delivery, Beverage, Towing ALL 2 year/unlimited miles; 3 year/unlimited miles; 4 year/unlimited miles
      ALL
      Standard Duty - Bus
    ALL 2 year/unlimited miles
      ALL
    Specifications
    Recommended model by application Medium-duty application
      Pickup and delivery Towing School bus City/Shuttle bus

    Procision

    EDCO-6F107A

    PTO enabled Max. 260 HP and/or 33,000 lbs. GCW + - + +
    Max. 300 HP and/or 35,000 lbs. GCW + - + +
    PTO not enabled Max. 260 HP and/or 33,000 lbs. GCW
    + + - -
    Max. 260 HP and/or 33,000 lbs. GCW
    + + - -

    Procision with Park Pawl

    EDCO-6F107A-P

    PTO enabled
    Max. 260 HP and/or 33,000 lbs. GCW
    + - + -
    Max. 260 HP and/or 33,000 lbs. GCW
    + - + -
    PTO not enabled
    Max. 260 HP and/or 33,000 lbs. GCW
    + + - -
    Max. 260 HP and/or 33,000 lbs. GCW
    + + - -

    Procision

    EDCO-6F107A-B

    PTO not enabled Max. 260 HP and/or 33,000 lbs. GCW
    - - + -
    Max. 260 HP and/or 33,000 lbs. GCW
    - - + -

    Notes:

    Model availability varies by OEM. Consult with your dealer or Eaton Roadranger on specifics.

    Specifications

    Speeds Forward Speeds 7
    Reverse Gears 1
    Capacities Maximum GCW lbs. [kgs]
    33,000 [14,969] with park pawl / 35,000 [15,875] without park pawl
    Maximum Engine Torque lb.-ft. [Nm]
    660 [895]
    Dimensions Length in. [mm]
    30.1 [765]
    Weight lbs. [kgs]
    364 [165]
    Gear Ratios
    Overall Ratio 10.13:1
    First Gear Ratio 6.5:1
    Forward Gears Gear Ratio
    1 6.5
    2 4.17
    3 2.53
    4 1.55
    5 1.00
    6 0.77
    7 0.64
    Reverse Gears 1 6.15
    Lubrication and Cooling Lubrication Interval miles [km] 150,000 [241,402] or 10 years
    Oil Capacity pints [liters] 25.6 [12]
    Recommended Oil Eaton PS-278
    External Oil to Water Cooler Not required
    PTO Capability
    Left 6-bolt Yes 4
    Right 6-bolt Yes
    Rear Auxiliary Countershaft Yes
    PTO Speed % of Engine

    Left 39

    Right 82

    Combined PTO Torque lb.-ft. [Nm] 500 [677.9] 7
    Typical Vehicle Types
    Pickup & delivery
    School bus
    Towing & recovery
    Beverage
      Transit coach Recreational vehicle
      Notes:
    7  Minimum engine speed 1100 RPM. Includes all PTOs in operation.
    8  Second clutch closed.
