The UltraShift PLUS MHP automated transmission is based on the RT-13 and with its 140,000 pounds (63.502 kg) maximum gross combined weight rating, it is versatile enough to handle a variety of on-road applications.
Eaton Cummins Automated Transmission Technologies has a broad portfolio of transmissions to help you get the job done. By answering a short series of questions about your truck and your route, we'll give you a couple of recommendations for heavy-duty automated transmissions that best fit your fleet's unique needs.

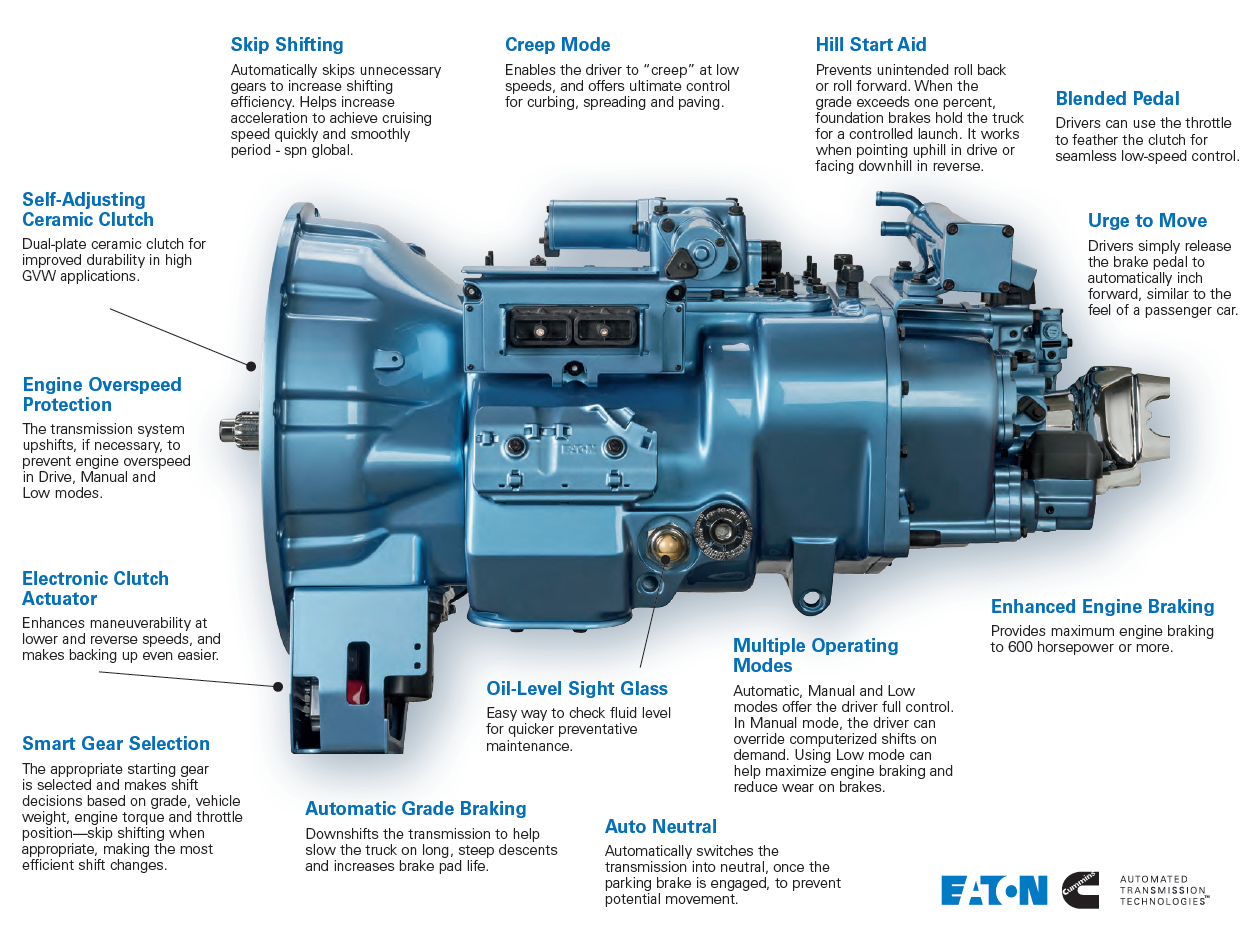

Vehicle control is vital on job sites. That’s why we engineer advanced features such as GearLogic™ technology, which improves low-speed performance, into our products. When it comes to grades, UltraShift PLUS transmissions offer superior performance compared to torque converter automatics. The Aggressive Performance calibration also improves acceleration through enhanced shift strategies. Enhanced split-shaft power take-off (PTO) capabilities allow the operator to control the throttle and transmission gear selection outside the vehicle’s cab for improved efficiency and safety.
UltraShift PLUS transmissions are designed for optimal fuel efficiency, and less wear and tear on drivetrain components for reduced maintenance costs. Compared to a torque converter automatic, an UltraShift PLUS will cost you about 50% less. It will also double the length of lubricant change intervals and use 50% less fluid. Service can be performed at your local dealer to get your vehicle back on the job faster maximizing your uptime -- no need for a two-step repair process.
Fleet managers and drivers alike will appreciate the improved safety and greater fleet-wide fuel efficiency these automated transmissions deliver compared to their manual counterparts and torque converter automatics.
If there is a service issue, UltraShift PLUS uses Eaton IntelliConnect,™ a telematics-capable system that provides near real-time monitoring of vehicle fault codes, prioritizes the critical events and provides accurate and comprehensive action plans by our technical experts. Unplanned downtime is reduced and quicker repair diagnosis gets you back on the road faster.
Like all Eaton Cummins automated transmissions, UltraShift PLUS is backed by the support, solutions and expertise of the Roadranger® network.
UltraShift PLUS Service Literature
You can now access digital versions of our product service literature. These digital documents are always up to date and contain the same real-time information you would have access to using Product Information within our ServiceRanger 4 diagnostic tool.
Click on the Troubleshooting Guide or Service Manual thumbnail to access each document.
| Application | Torque rating | ||
|---|---|---|---|
| Transmission |
On-road Linehaul | 1750 lbs.-ft. and below |
5 year/500,000 miles |
| 1850 lbs.-ft. and above |
|||
| Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach | 1750 lbs.-ft. and below | 3 year/unlimited miles |
|
| 1850 lbs.-ft. and above | |||
| Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway |
1750 lbs.-ft. and below |
2 year/unlimited miles |
|
| 1850 lbs.-ft. and above |
|||
| Clutch | On-road Linehaul | All | 3 year/350,000 miles |
| Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach |
3 year/unlimited miles |
||
| Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway |
2 year/unlimited miles |
| Application | Torque rating | ||
|---|---|---|---|
| Transmission |
On-road Linehaul | 1750 lbs.-ft. and below |
1 years/250,000 miles; 2 years/250,000 miles; 2 years/350,000 miles |
| 1850 lbs.-ft. and above |
|||
| Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach, Fire service, Rescue vehicle | 1750 lbs.-ft. and below | 1 year/unlimited miles; 2 year/unlimited miles |
|
| 1850 lbs.-ft. and above | |||
| Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway |
1750 lbs.-ft. and below |
1 year/unlimited miles; 2 year/unlimited miles; 3 year/unlimited miles |
|
| 1850 lbs.-ft. and above |
|||
| Clutch | On-road Linehaul |
All | 1 year/100,000 miles; 2 years/200,000 miles |
| Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach, Fire service, Rescue vehicle |
1 year/unlimited miles; 2 year/unlimited miles | ||
| Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway |
1 year/unlimited miles; 2 year/unlimited miles; 3 year/unlimited miles |
Watch to learn more about UltraShift PLUS
| Models |
Maximum Engine Torque Capacity lb.-ft. [Nm] |
|---|---|
| FO-16E313A-MHP | 1650 [2237] |
| FO-18E313A-MHP | 1850 [2509] |
| FO-20E313A-MHP | 2050 [2779] |
| Speeds | Forward Speeds | 13 | ||
| Reverse Gears | 3 | |||
| Capacities | Maximum GCW lbs. [kgs] |
140,000 [63,503] |
||
| Maximum Engine Torque lb.-ft. [Nm] |
2050 [2779] |
|||
| Dimensions | Length in. [mm] |
34.98 [888.4] |
||
| Weight lbs. [kgs] |
978 [444] |
|||
| Gear Ratios |
Overall Ratio | 16.84:1 | ||
| First Gear Ratio | 12.29:1 | |||
| Forward Gears | Gear | Ratio | % Step | |
| 1 | 12.29 | 44 | ||
| 2 | 8.51 | 41 | ||
| 3 | 6.06 | 38 | ||
| 4 | 4.38 | 37 | ||
| 5 | 3.20 | 40 | ||
| 6 | 2.29 | 17 | ||
| 7 | 1.95 | 20 | ||
| 8 | 1.62 | 17 | ||
| 9 | 1.38 | 18 | ||
| 10 | 1.17 | 17 | ||
| 11 | 1.00 | 16 | ||
| 12 | 0.86 | 17 | ||
| 13 | 0.73 | -- | ||
| Reverse Gears | 1 | 15.06 | ||
| 2 | 12.85 | |||
| 3 | 4.03 | |||
| Lubrication and Cooling | Lubrication Interval miles [km] | 500,000 [804,672] | ||
| Oil Capacity pints [liters] | 28 [13.2] | |||
| Recommended Oil | Eaton PS-386 | |||
| Integral Oil Pump | Required option | |||
| External Oil to Water Cooler | Available option | |||
| External Oil Filter | Available option | |||
| PTO Capability |
6-bolt | Yes 4 |
||
| 8-bolt | Yes | |||
| Thru-shaft | No | |||
| PTO Speed % of Engine | 79 | |||
| Combined PTO Torque lb.-ft. [Nm] | 500 [677.9] 6 |
|||
| Typical Vehicle Types |
Doubles/triples | Bulk hauler | ||
| General freight |
Steel hauler |
|||
| Tanker | Livestock hauler | |||
| Notes: 4 Will interfere with front mount oil filter. Rear or remote mount oil filter must be utilized. 6 Intermittent torque of up to 750 lb.-ft. at the countershaft is permitted for 5 minutes of each 15 minute PTO duty cycle. |
||||
