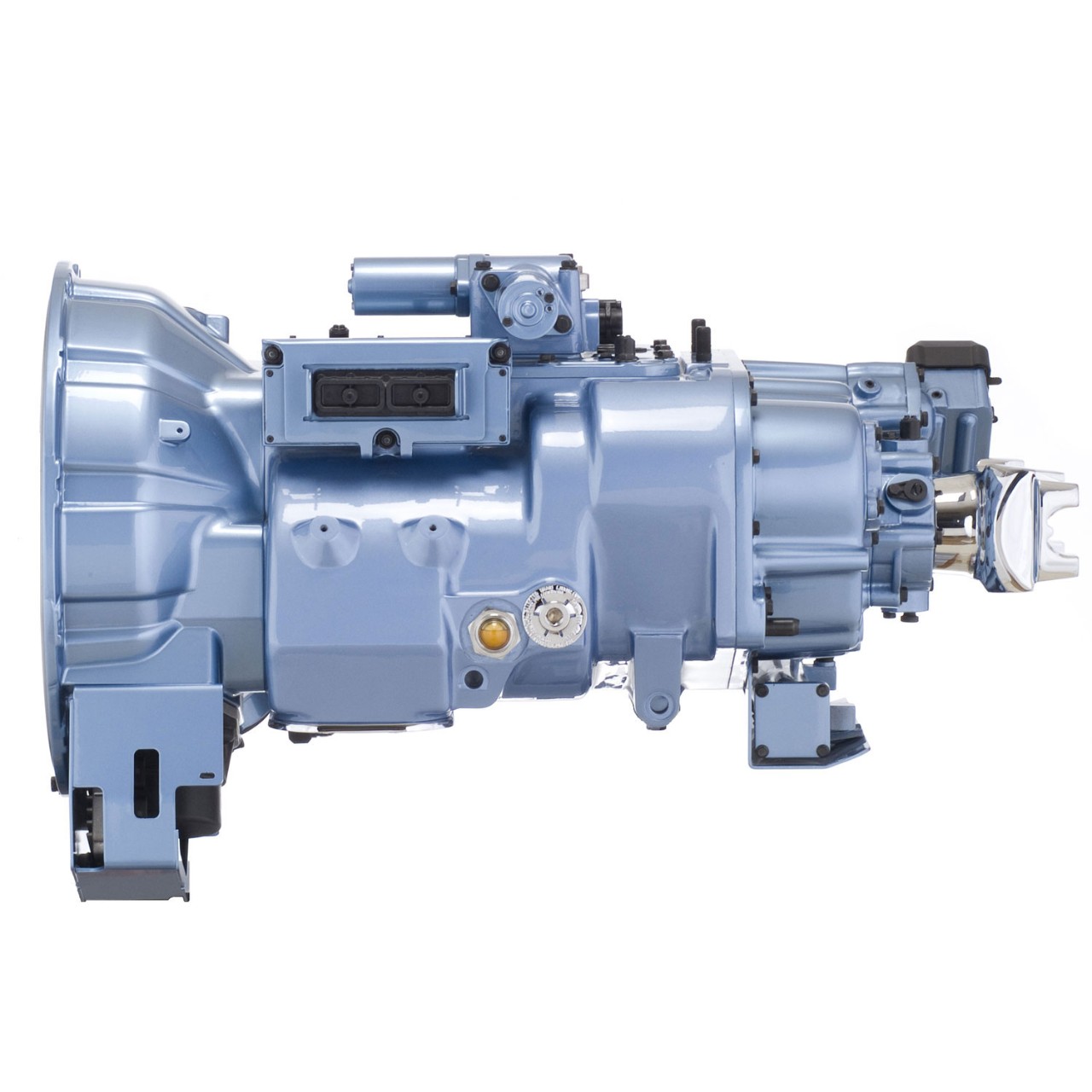

UltraShift PLUS VCS automated manual transmission

UltraShift PLUS VCS is a versatile automated manual transmission designed for a mix of on- and off-road applications like dump trucks, roll-offs, municipality, utility, and other construction trucks.

Overall ratio
19.68 - good for mixed on/off-road use
Maximum GCW
110,000 lbs. (49.895 kg)
PTO Compatibility
6-bolt, 8-bolt, and Thru-shaft mounts

Performance You Can Count On

Vehicle control is vital on job sites. That’s why we engineer advanced features such as GearLogic™ technology, which improves low-speed performance, into our products. When it comes to grades, UltraShift PLUS transmissions offer superior performance compared to torque converter automatics. The Aggressive Performance calibration also improves acceleration through enhanced shift strategies. Enhanced split-shaft power take-off (PTO) capabilities allow the operator to control the throttle and transmission gear selection outside the vehicle’s cab for improved efficiency and safety.

Designed for Your Bottom Line

UltraShift PLUS transmissions are designed for optimal fuel efficiency, and less wear and tear on drivetrain components for reduced maintenance costs. Compared to a torque converter automatic, an UltraShift PLUS will cost you about 50% less. It will also double the length of lubricant change intervals and use 50% less fluid. Service can be performed at your local dealer to get your vehicle back on the job faster maximizing your uptime -- no need for a two-step repair process.

Get to know UltraShift PLUS

Fleet managers and drivers alike will appreciate the improved safety and greater fleet-wide fuel efficiency these automated transmissions deliver compared to their manual counterparts and torque converter automatics.

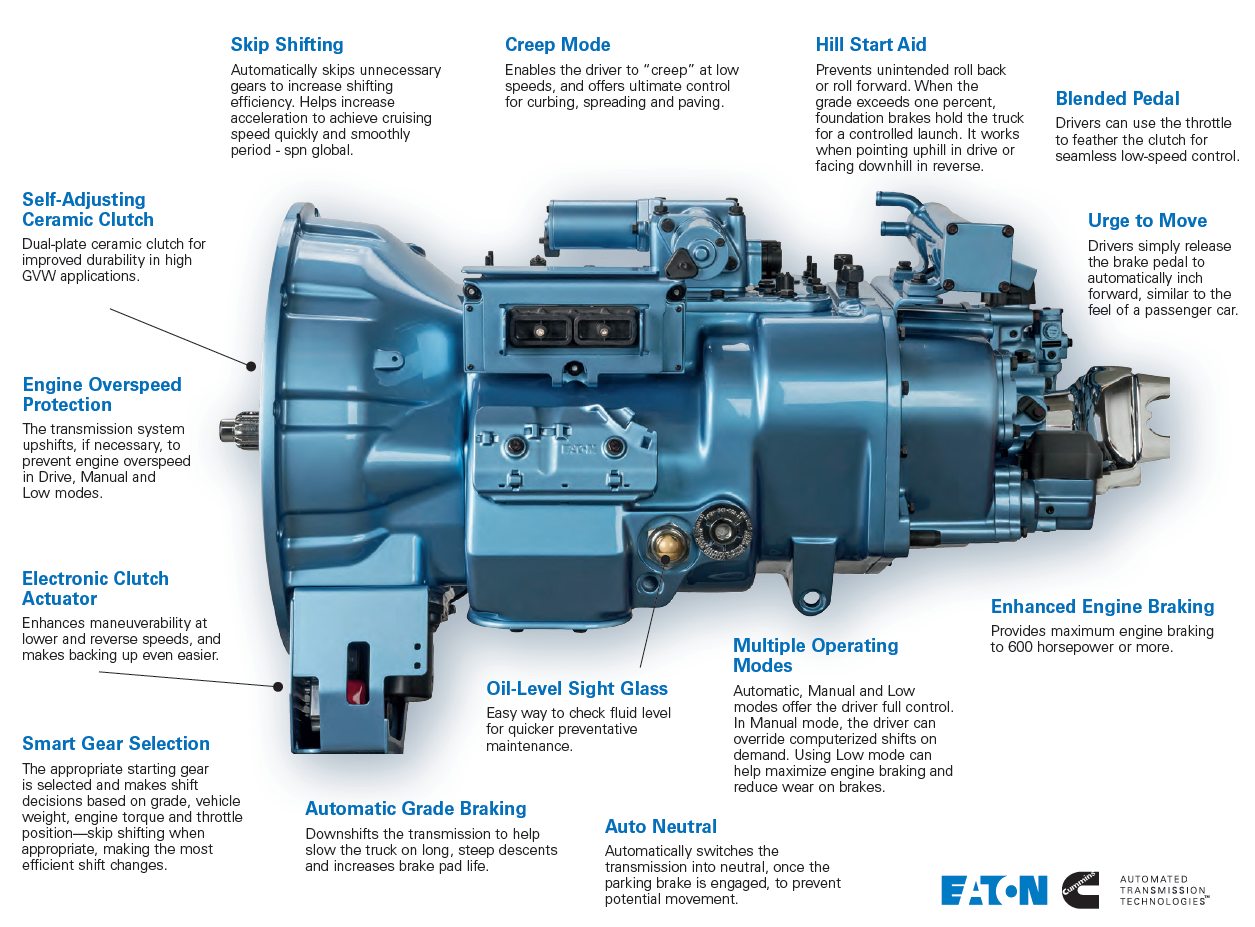

UltraShift PLUS key features:

A powerful remote diagnostics solution

If there is a service issue, UltraShift PLUS uses Eaton IntelliConnect,™ a telematics-capable system that provides near real-time monitoring of vehicle fault codes, prioritizes the critical events and provides accurate and comprehensive action plans by our technical experts. Unplanned downtime is reduced and quicker repair diagnosis gets you back on the road faster.

Learn more and sign up

Peace of Mind

Like all Eaton Cummins automated transmissions, UltraShift PLUS is backed by the support, solutions and expertise of the Roadranger® network.

UltraShift PLUS Service Literature

You can now access digital versions of our product service literature. These digital documents are always up to date and contain the same real-time information you would have access to using Product Information within our ServiceRanger 4 diagnostic tool.

Click on the Troubleshooting Guide or Service Manual thumbnail to access each document.

Standard Warranty

  Application Torque rating
Transmission
Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach, Fire service, Rescue vehicle 1750 lbs.-ft. and below 3 year/unlimited miles
  1850 lbs.-ft. and above
  Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway
1750 lbs.-ft. and below
2 year/unlimited miles
  1850 lbs.-ft. and above
Clutch Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach, Fire service, Rescue vehicle
All 3 year/unlimited miles
  Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway
2 year/unlimited miles

Extended Protection Plans

  Application Torque rating
Transmission
Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach, Fire service, Rescue vehicle 1750 lbs.-ft. and below 1 year/unlimited miles; 2 year/unlimited miles
  1850 lbs.-ft. and above
  Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway
1750 lbs.-ft. and below
1 year/unlimited miles; 2 year/unlimited miles; 3 year/unlimited miles
  1850 lbs.-ft. and above
Clutch Standard Duty - Pickup & delivery, Construction, Recreational vehicle, Transit coach, Fire service, Rescue vehicle
All 1 year/unlimited miles; 2 year/unlimited miles
  Severe Duty - Heavy haul, Logging, Mining, Oil field, Refuse, Agriculture, Off-highway
1 year/unlimited miles; 2 year/unlimited miles; 3 year/unlimited miles

Video gallery

Watch to learn more about UltraShift PLUS

    Specifications
    Models
    Maximum Engine Torque Capacity lb.-ft. [Nm]
    FO-10E308LL-VCS 1050 [1424]
    FO-11E308LL-VCS
    1150 [1559]
    FO-12E308LL-VCS
    1250 [1695]
    FO-14E308LL-VCS
    1450 [1966]
    FO-16E308LL-VCS
    1650 [2237]
    FO-17E308LL-VCS
    1750 [2373]

    Specifications

    Speeds Forward Speeds 10
    Reverse Gears 3
    Capacities Maximum GCW lbs. [kgs]
    110,000 [49,895]
    Maximum Engine Torque lb.-ft. [Nm]
    1750 [2373]
    Dimensions Length in. [mm]
    34.98 [888.4]
    Weight lbs. [kgs]
    975 [442]
    Gear Ratios
    Overall Ratio 19.73:1
    First Gear Ratio 14.4:1
    Forward Gears Gear Ratio % Step
    1 14.56 55
    2 9.42 51
    3 6.24 35
    4 4.63 36
    5 3.40 34
    6 2.53 38
    7 1.83 35
    8 1.36 36
    9 1.00 34
    10 0.74 --
    Reverse Gears 1 15.22
    2 9.85
    3 2.89
    Lubrication and Cooling Lubrication Interval miles [km] 180,000 [289,682]
    Oil Capacity pints [liters] 28 [13.2]
    Recommended Oil Eaton PS-386
    Integral Oil Pump Required option
    External Oil to Water Cooler Available option
    External Oil Filter Available option
    PTO Capability
    6-bolt Yes 4
    8-bolt Yes
    Thru-shaft Yes
    PTO Speed % of Engine 79
    Combined PTO Torque lb.-ft. [Nm] 500 [677.9] 6
    Typical Vehicle Types
    Dump truck
    Roll-off
    Asphalt truck Municipalilty truck
      Utility truck


    Notes:

    4 Will interfere with front mount oil filter. Rear or remote mount oil filter must be utilized.
    6 Intermittent torque of up to 750 lb.-ft. at the countershaft is permitted for 5 minutes of each 15 minute PTO duty cycle.
