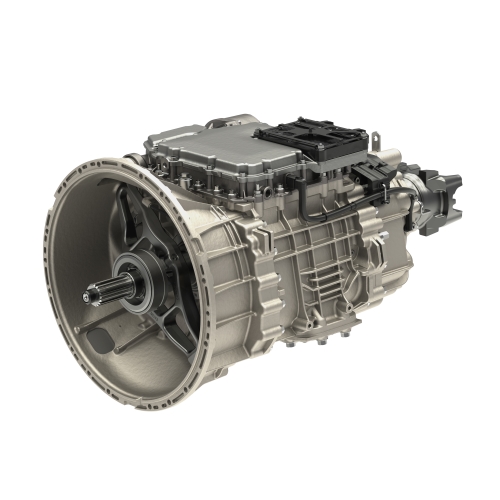

Endurant HD automated transmission

The Endurant HD is a lightweight, highly efficient transmission designed for superb driveability in on-highway applications. Sophisticated software allows the engine and transmission to work seamlessly, improving efficiency and performance. Smart features like a transmission fluid pressure sensor help protect the transmission from damage. In addition, the cooler-less design reduces the risk of cooler leaks and costly repairs. Predictive shifting uses look-ahead technology to execute shift decisions that improve fuel economy and driver comfort. Engineered with a twin-countershaft design for the most efficient delivery of engine torque, it’s capable of hauling up to 110,000 pounds (49,895 kg) Gross Vehicle Weight.

Models
12-speed overdrive and 11-speed direct drive
Maximum GCW
110,000 pounds (49.895 kg)
Lube change interval
Up to 750,000 miles (1.207.008 km)

GET TO KNOW ENDURANT HD

The Endurant HD delivers an impressive combination of performance and efficiency.

  • An all-aluminum housing reduces weight and contributes to thermal optimization.
  • The maintenance-free, diaphragm spring clutch provides excellent launch and low-speed maneuverability.
  • A standard 8-bolt PTO opening enhances vehicle flexibility, which potentially improves vehicle resale value.

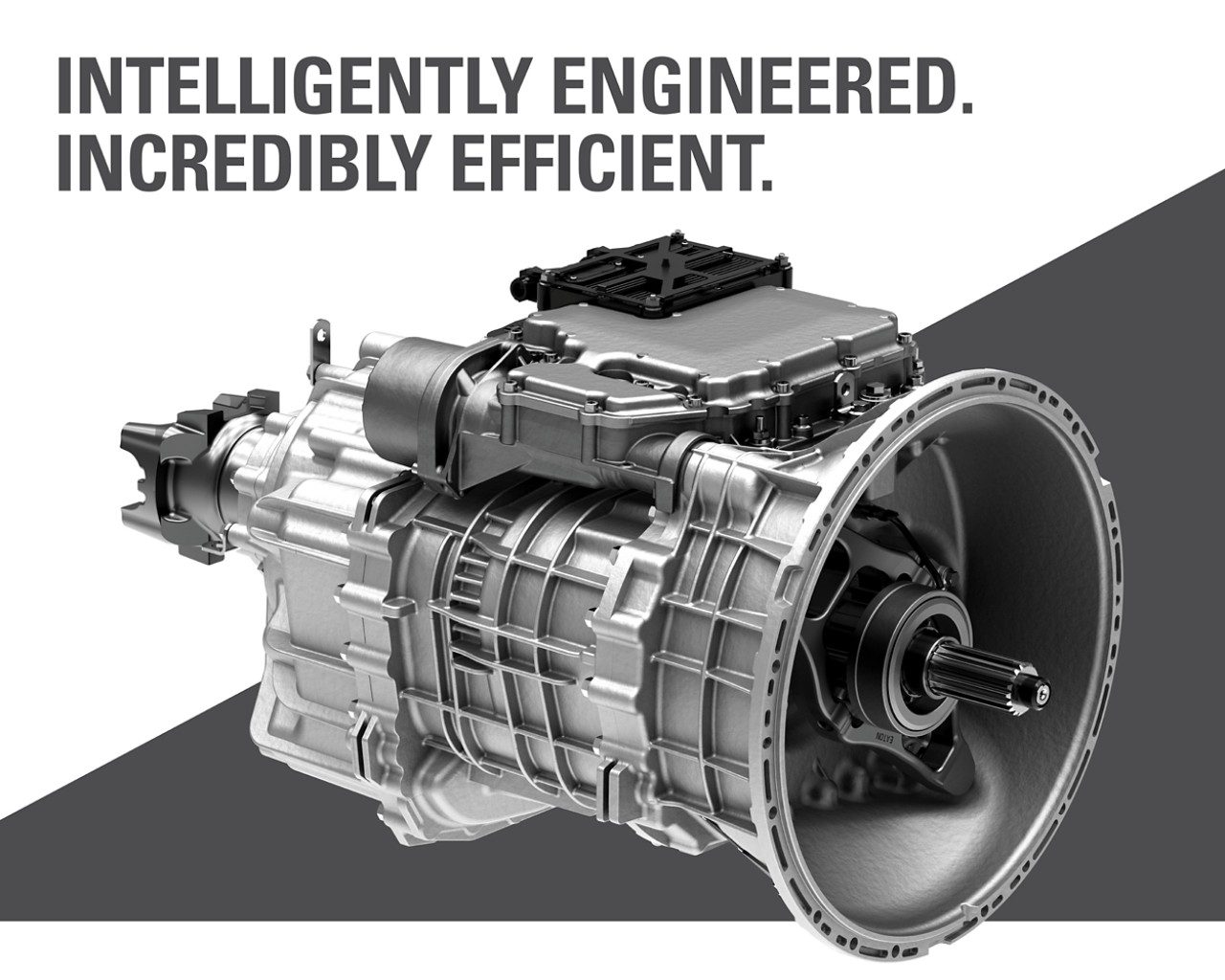

Web HD final 1.jpg

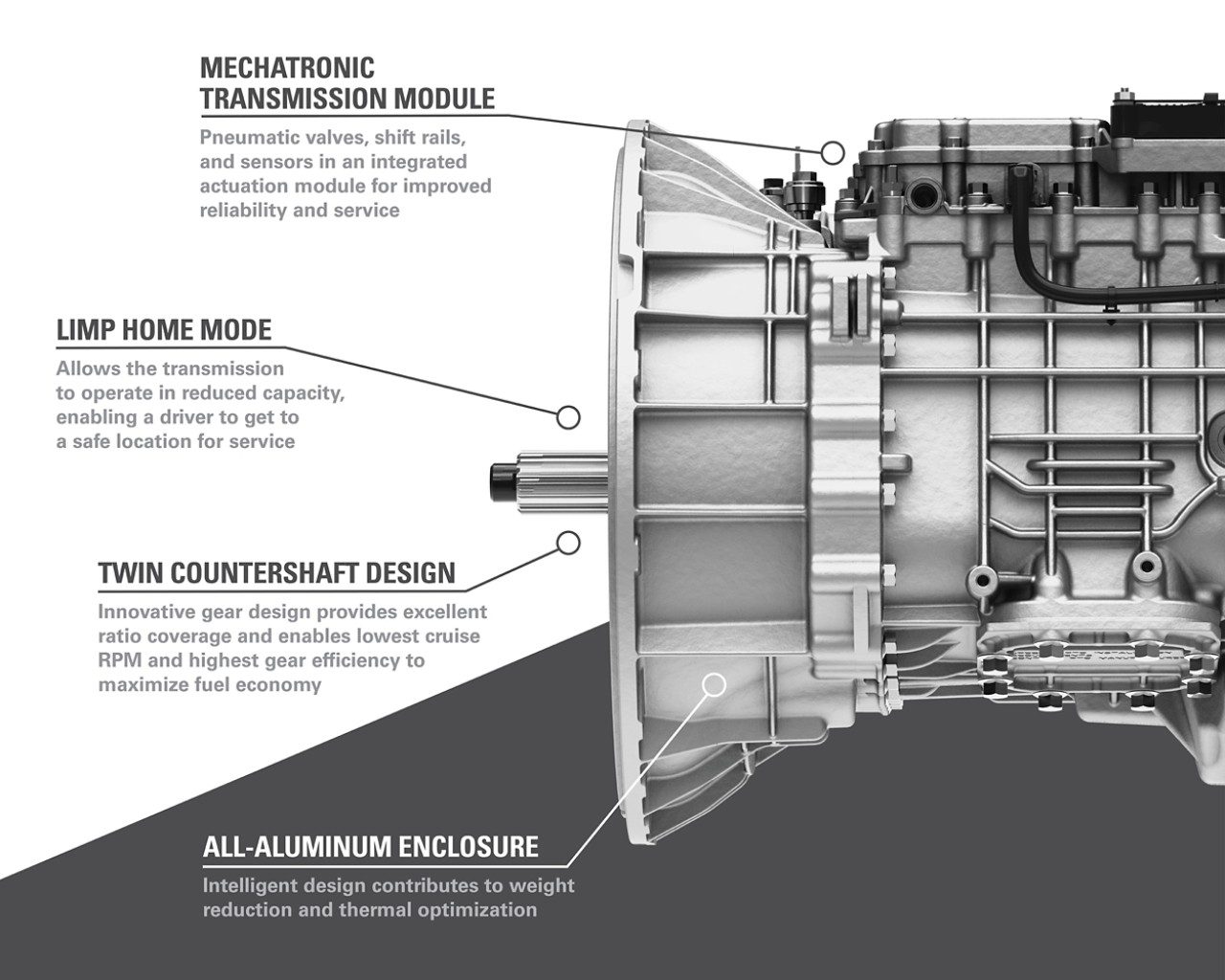

Web HD final 2.jpg

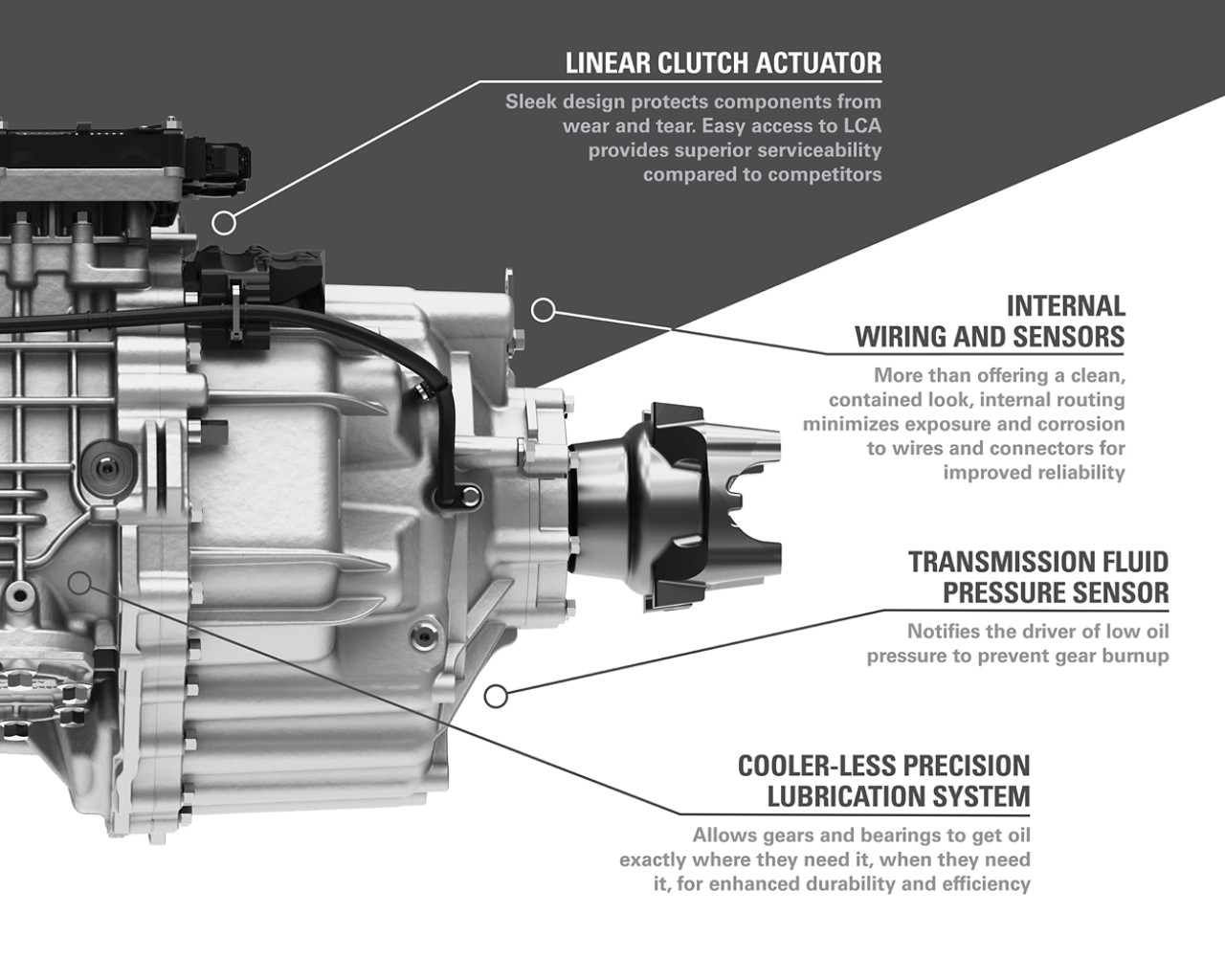

Web HD final 3.jpg

THE RIGHT TRANSMISSION

The Endurant HD Series offers choices, so you choose what’s right for your fleet – direct drive and overdrive models, single and dual PTO mounts, diesel and natural gas engine compatibility, and unique software settings.

OVERDRIVE & DIRECT DRIVE

Available in both 12-speed overdrive and 11-speed direct drive, the Endurant HD gives your fleet the power of choice.

DUAL PTO OPTION

Standard bottom mount and optional rear PTO mounts are available on Endurant HD 12-speed models, making them perfect for bulk haulers.

PERFORMANCE GOALS

New for the Endurant HD series are Performance Goals which combine transmission shift points and clutch calibrations with unique software. This allows operators to easily tailor transmission performance to the demands of the job.

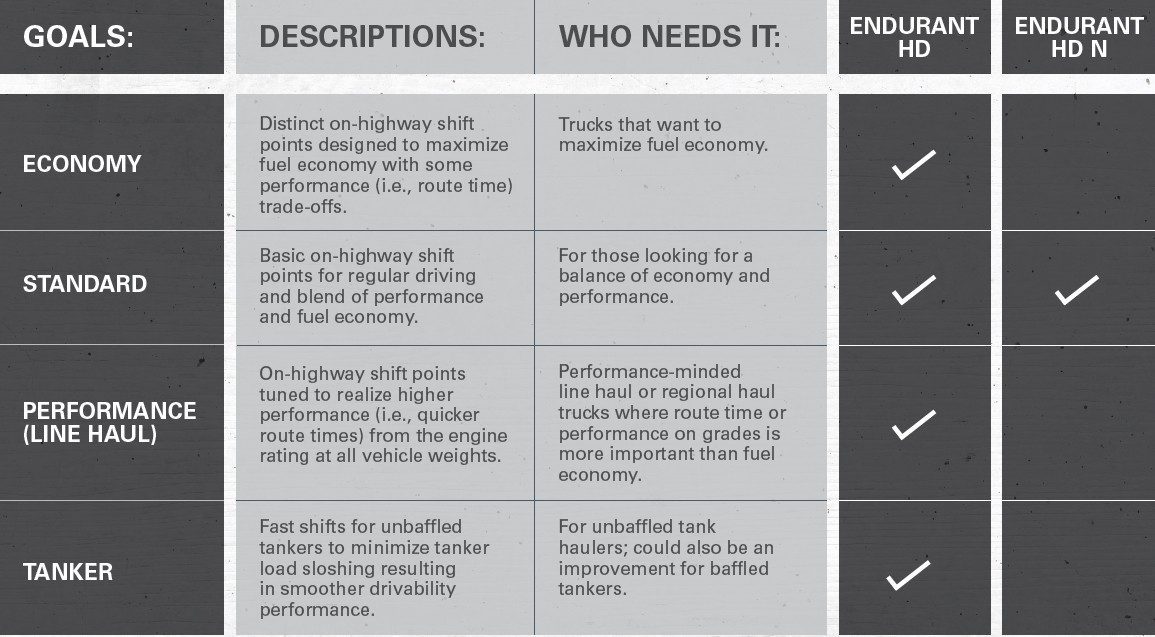

endurant hd performance goals table.jpg

GEARLOGIC TECHNOLOGY

Achieving maximum performance requires a combination of strength and smarts. To get the most out of the Endurant XD series hardware, we use Gearlogic technology - a suite of intelligent features that improves performance,  fuel efficiency, and driver confidence.

FEATURES: DESCRIPTIONS:
HILL START AID Prevents unintended rollback or roll forward. When the grade exceeds the programmed threshold, the foundation brakes hold the truck for a controlled launch. It works when pointing uphill in drive or facing downhill in reverse.
AUTO NEUTRAL Automatically switches the transmission into neutral once the parking brake is engaged to prevent potential movement of the vehicle.
ENGINE OVERSPEED PROTECTION The transmission system up-shffts if necessary to prevent engine overspeed in drive, manual, and low modes.
ENHANCED ENGINE BRAKING Downshifts the transmission to help slow the truck on long, steep descents and increase brake pad life.
LOAD-BASED SHIFTING Selects appropriate starting gear and makes shift decisions based on grade, vehicle weight, engine torque, and throttle position.
URGE TO MOVE Drivers simply release the brake pedal to automatically inch forward, similar to the feel of a passenger car.
CREEP MODE Offers ultimate control to "creep" with a locked clutch at engine idle. Drivers can manually select different gears to fine-tune vehicle speed.
NEUTRAL COAST Fuel-saving feature that disengages the driveline on slight downhill grades.
SMART GEAR SELECTION The appropriate starting gear is selected and makes shift decisions based on grade, vehicle weight, engine torque, and throttle position - skip shifting when appropriate, making the most efficient changes based on those conditions.
PREDICTIVE SHIFTING Uses look-ahead technology to execute shift decisions that improve fuel economy and driver comfort.

BACKED BY THE BEST. SO YOU CAN DELIVER YOUR BEST.

The Endurant HD is backed by the support, solutions, and expertise of the Roadranger network—the most experienced and accessible drivetrain consultants in the business. With their knowledge and IntelliConnect* remote diagnostics monitoring vehicle fault codes, you can count on the Endurant HD to keep you rolling mile after mile while reducing unplanned downtime.

Endurant HD Service Literature

You can now access digital versions of our product service literature. These digital documents are always up-to-date and contain the same real-time information you would have access to using Product Information within our ServiceRanger 4 diagnostic tool.

Click on the Troubleshooting Guide, Service Manual or Service Parts thumbnails below to access each document.

Standard Warranty

Transmission Linehaul and Pickup & Delivery applications: 5 years / 750,000 miles
  Construction, Refuse, and Agriculture applications: 3 years / 300,000 miles
Clutch Linehaul and Pickup & Delivery applications: 3 years / 350,000 miles
  Construction, Refuse, and Agriculture applications:  2 years / 200,000 miles

Extended Protection Plans

Transmission 1 year; 2 year; and 2 year / 100,000 miles
Clutch 1 year / 100,000 miles; 2 year / 150,000 miles

Video gallery

Watch to learn more about Endurant

    Specifications

    Specifications

        Overdrive (C ratio)
    Speeds Forward Speeds 12
    Reverse Gears 1 or 2
    Capacities Maximum GCW lbs. [kgs]
    110,000 [49,895]
    Maximum Engine Torque lb.-ft. [Nm]
    1850 [2508]
    Dimensions Length in. [mm]
    37.9 [963.7]
    Weight lbs. [kgs]

    657 [298] single PTO

    660 [299] dual PTO

    Gear Ratios
    Overall Ratio 18.85:1
    First Gear Ratio 14.43
    Forward Gears Gear Ratio % Step
    1 14.43 31
    2 11.05 31
    3 8.44 31
    4 6.46 31
    5 4.95 31
    6 3.79 30
    7 2.91 31
    8 2.23 31
    9 1.70 31
    10 1.30 30
    11 1.00 31
    12 0.77 --
    Reverse Gears 1 16.92
    2 12.95
    Lubrication and Cooling Lubrication Interval miles [km] 750,000 [1,207,008]
    Oil Capacity pints [liters] 16 [7.57]
    Recommended Oil Eaton PS-386
    PTO Capability
    4-bolt Yes 1
    6-bolt No
    8-bolt Yes
    Thru-shaft No
    PTO Speed % of Engine 137
    Combined PTO Torque lb.-ft. [Nm] 385 [522]
    Typical Vehicle Types
    Linehaul Regional haul
    Beverage truck Block truck
    Flatbed truck Landscape truck
    Moving van Crane delivery
    Stake truck Cherry picker
    Tanker Refuse roll-off
    Wrecker/Recovery Refuse transfer vehicle
    Unbaffled milk tanker Scrap truck
    Livestock hauler Grain hauler


    Application approval rules and details provided through the truck manufacturer and Eaton Cummins.

    Notes:

    1 dual PTO option on 12 speed overdrive models

    Specifications

        Direct Drive (B ratio)
    Speeds Forward Speeds 11
    Reverse Gears 1 or 2
    Capacities Maximum GCW lbs. [kgs]
    80,000 [36,287]
    Maximum Engine Torque lb.-ft. [Nm]
    1750 [2373]
    Dimensions Length in. [mm]
    37.9 [963.7]
    Weight lbs. [kgs]
    657 [298] single PTO
    Gear Ratios
    Overall Ratio 14.43:1
    First Gear Ratio 14.43:1
    Forward Gears Gear Ratio % Step
    1 14.43 31
    2 11.05 31
    3 8.44 31
    4 6.46 31
    5 4.95 31
    6 3.79 30
    7 2.91 31
    8 2.23 31
    9 1.70 31
    10 1.30 30
    11 1.00 31
    Reverse Gears 1 16.92
    2 12.95
    Lubrication and Cooling Lubrication Interval miles [km] 750,000 [1,207,008]
    Oil Capacity pints [liters] 16 [7.57]
    Recommended Oil Eaton PS-386
    PTO Capability
    4-bolt No
    6-bolt No
    8-bolt Yes
    Thru-shaft No
    PTO Speed % of Engine 137
    Combined PTO Torque lb.-ft. [Nm] 385 [522]
    Typical Vehicle Types
    Linehaul Regional haul
    Beverage truck Block truck
    Flatbed truck Landscape truck
    Moving van Crane delivery
    Stake truck Cherry picker
    Tanker Refuse roll-off
    Wrecker/Recovery Refuse transfer vehicle
    Unbaffled milk tanker Scrap truck
    Livestock hauler Grain hauler
      Application approval rules and details provided through the truck manufacturer and Eaton Cummins.
    Models
    Maximum Engine Torque Capacity lb.-ft. [Nm]
    EEO-14F112C 1450 [1966]
    EEO-15F112C 1550 [2101]
    EEO-16F112C 1650 [2237]
    EEO-17F112C 1750 [2373]
    EEO-18F112C 1850 [2508]
    EE-17F111B 1750 [2373]
